How to Set Up Bitmain Antminer S19j Pro 104Th?

Share

Array

TABLE OF CONTENT

    SUMMARY

    Antminer S19j Pro 104Th is another successful model from Bitmain, optimized for the SHA-256 algorithm. With an excellent hash rate of 104Th/s, S19j Pro 104Th gives an energy efficiency of 0.03j/Gh for a reduced power consumption of 3068W. Bitmain Antminer S19j Pro 104Th helps you mine cryptocurrencies that follow SHA-256 algorithms like Bitcoin (BTC), BitcoinCash (BCH), Terracoin (TRC), BitcoinSV (BSV), etc.

    So, have you decided to buy Bitmain Antminer S19j Pro 104Th? But you’re not sure of how to setup it? Setting up Antminer S19j Pro 104Th is straightforward. Here is a step-by-step guide for setting up Antminer S19j Pro with detailed instructions and images. This blog will be a handy reference to help you understand what to expect in the shipment package and how to set up the Antminer S19j Pro 104Th in detail.

    Step-By-Step Guide For Setting Up the Bitmain Antminer S19j Pro 104th

    Let’s discuss each steps in detail, sharing all the technical details with screenshots to set up the bitmain antminer S19j Pro 104th.

    Antminer s19j pro 104th set up steps

    What to Expect in the Shipment Package?

    • This is how you will receive the Antminer S19j Pro 104Th in a typical Bitmain box from Crypto Miner Bros.

    Antminer S19j Pro 104Th package

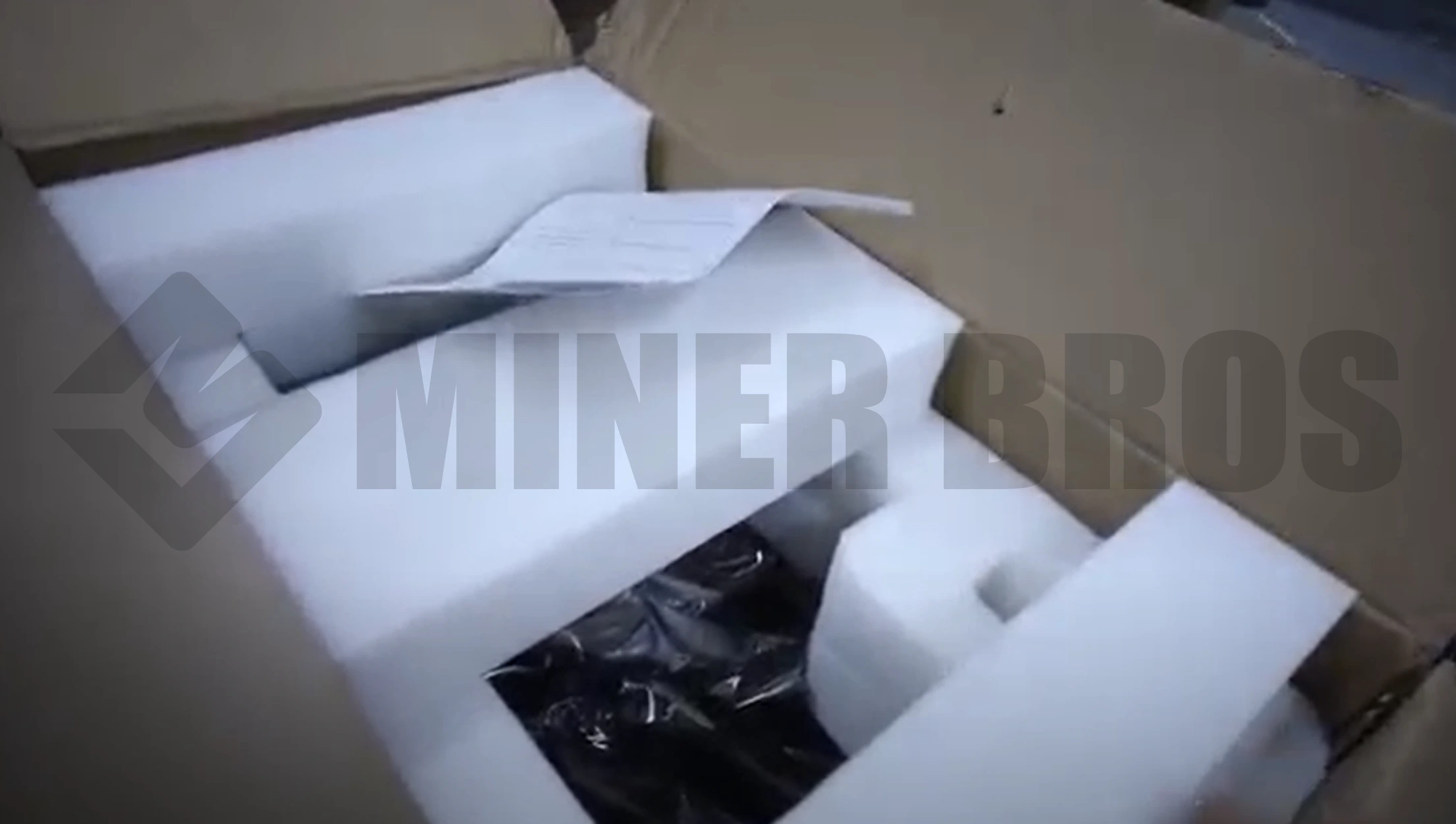

    • The machine is safely padded with foam pieces for better protection. As you open it, you will see a quick start guide to help you use the miner.

    Antminer S19j Pro 104Th package unboxing

    • As you remove the foam, you will find the entire machine perfectly wrapped in an antistatic bag and foam underneath for safe shipping.

    Antminer S19j Pro 104Th package unboxing 2

    If you order Antminer S19j Pro 104Th from a reputable site like Crypto Miner Bros, you will get the hardware within 3-4 business days. Crypto Miner Bros is transparent in its cost and has no hidden charges. For instance, all the charges listed on the website include shipping and taxes.crypto miner bros - Antminer S19j Pro 104Th

    However, the price of any mining hardware is subject to change. You can always check the latest price of the hardware from our website.

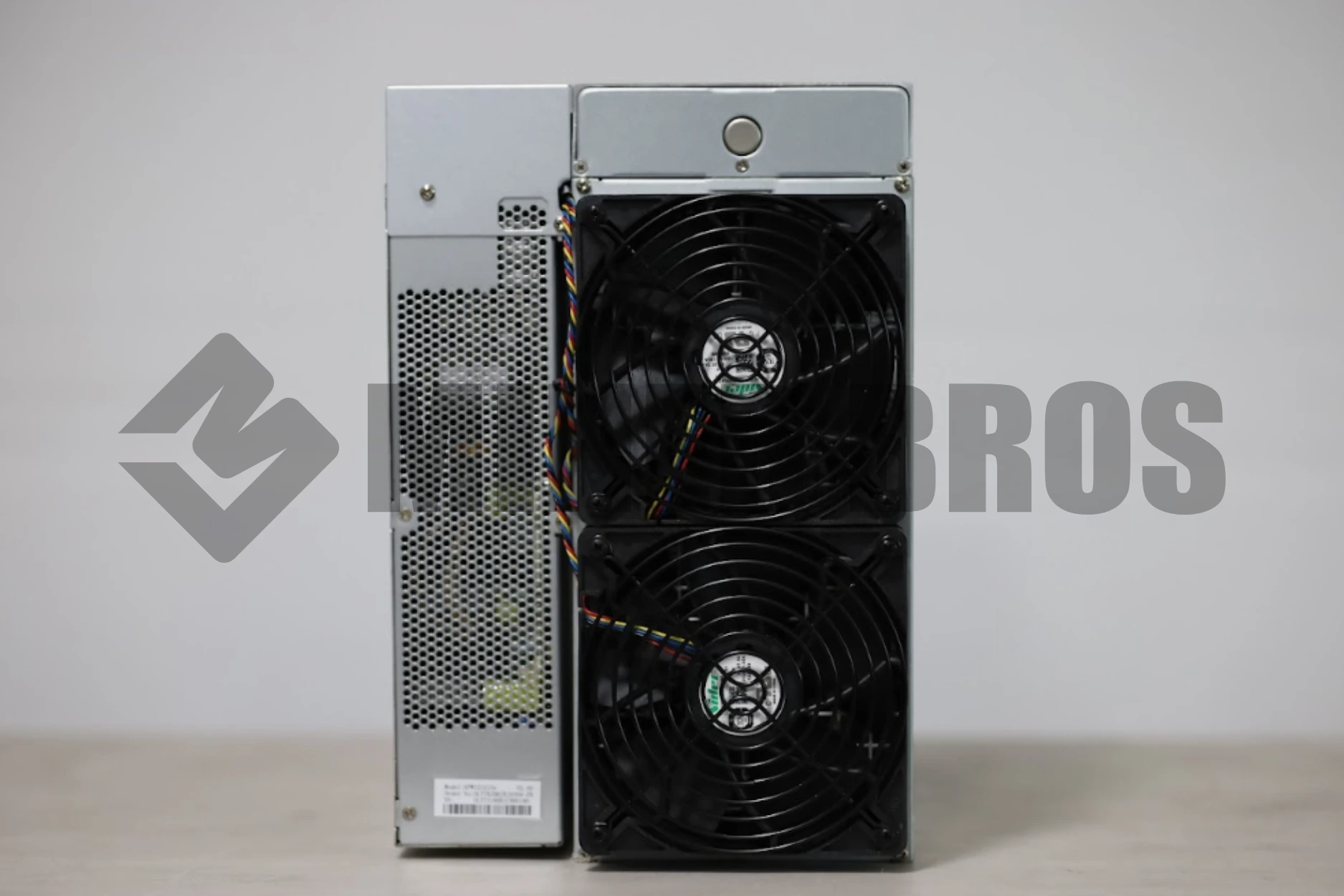

    The Antminer S19j Pro 104Th currently comes in two different looks. One is the same as the typical Antminer series, as shown in the following picture.

    Bitmain Antminer S19j Pro 104Th

    The other comes with a protective metal cover, as shown in the following picture.

    Bitmain Antminer S19j Pro 104Th

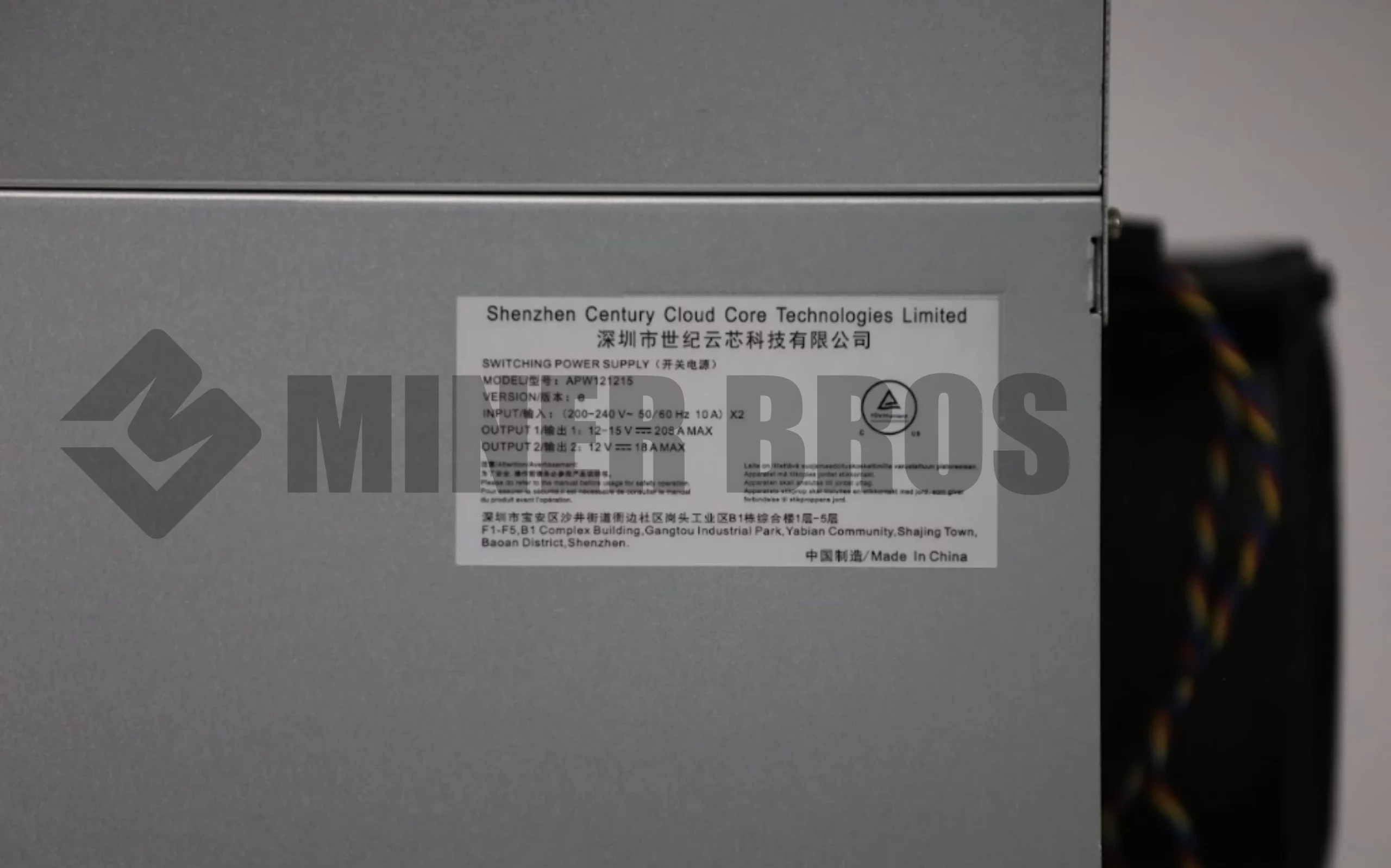

    You can find all the technical information of the device on its label.

    Steps to Set-Up the Bitmain Antminer S19j Pro 104Th

    1. Downloading the IP Reporter

    • Go to Bitmain’s support page. Select “Others” on the left under “Firmware List”, and then select “IP reporter” on the right.

    bitmain support page

    • Click on the Download button.

    bitmain support page - 8

    • Save the downloaded file in your preferred location on your computer.

    bitmain support page - 9

    • Go to the downloaded file and extract the zip file.

    bitmain support page - 10

    bitmain support page - 11

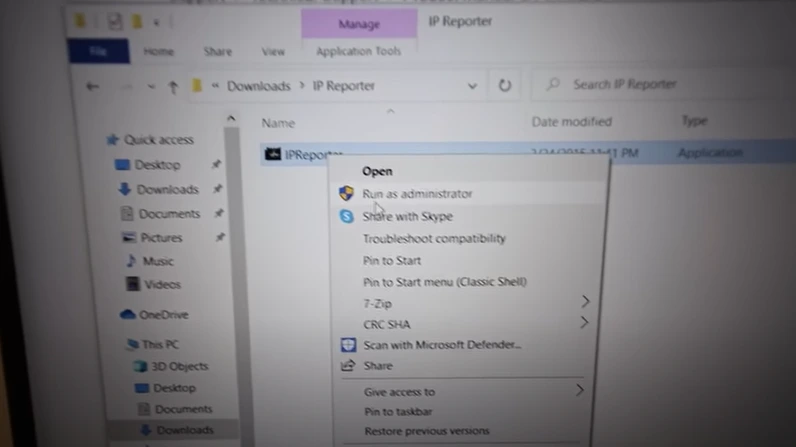

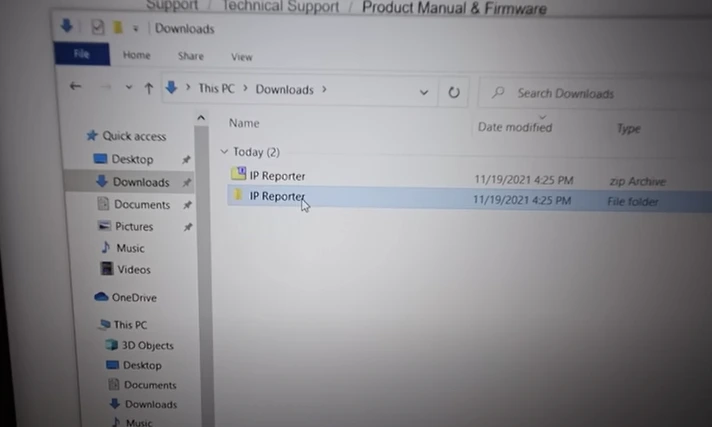

    • Now go to the extracted file and right-click it. Choose the option “ Run as administrator”.

    Downloading the IP Reporter - 12

    Downloading the IP Reporter - 13

    • Upon clicking, you will see the below screen. Click YES.

    Downloading the IP Reporter - 14

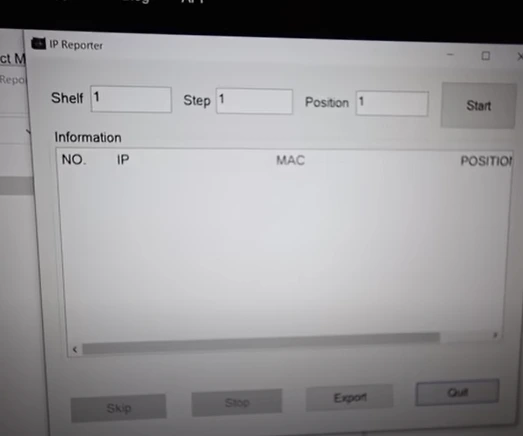

    • The below screen will pop up.

    Downloading the IP Reporter - 15

    2. Connecting the IP reporter to Antminer S19J Pro

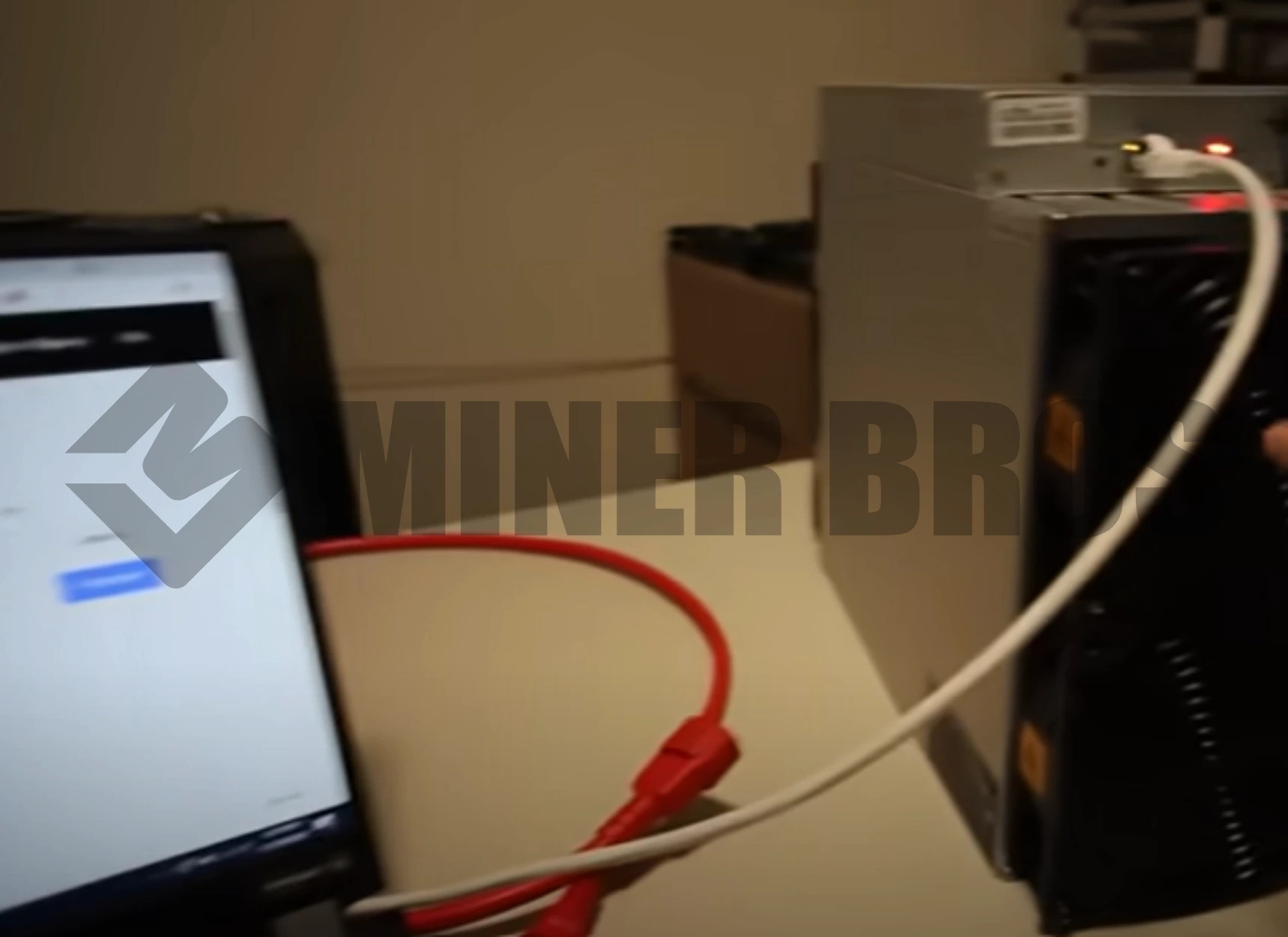

    • Before proceeding further, ensure your computer or laptop is connected to the same WiFi network that your LAN cable is plugged onto your S19J Pro.

    Connecting the IP reporter to Antminer S19J Pro - 16

    • Click the start button. You may receive a Firewall notice. Click “Allow Access”.

    Connecting the IP reporter to Antminer S19J Pro - 17

    Connecting the IP reporter to Antminer S19J Pro - 18

    • Now the IP reporter is ready to find the ASIC miner. Click on the IP report button on your S19j Pro and hold it for 5 seconds.

    Connecting the IP reporter to Antminer S19J Pro - 19

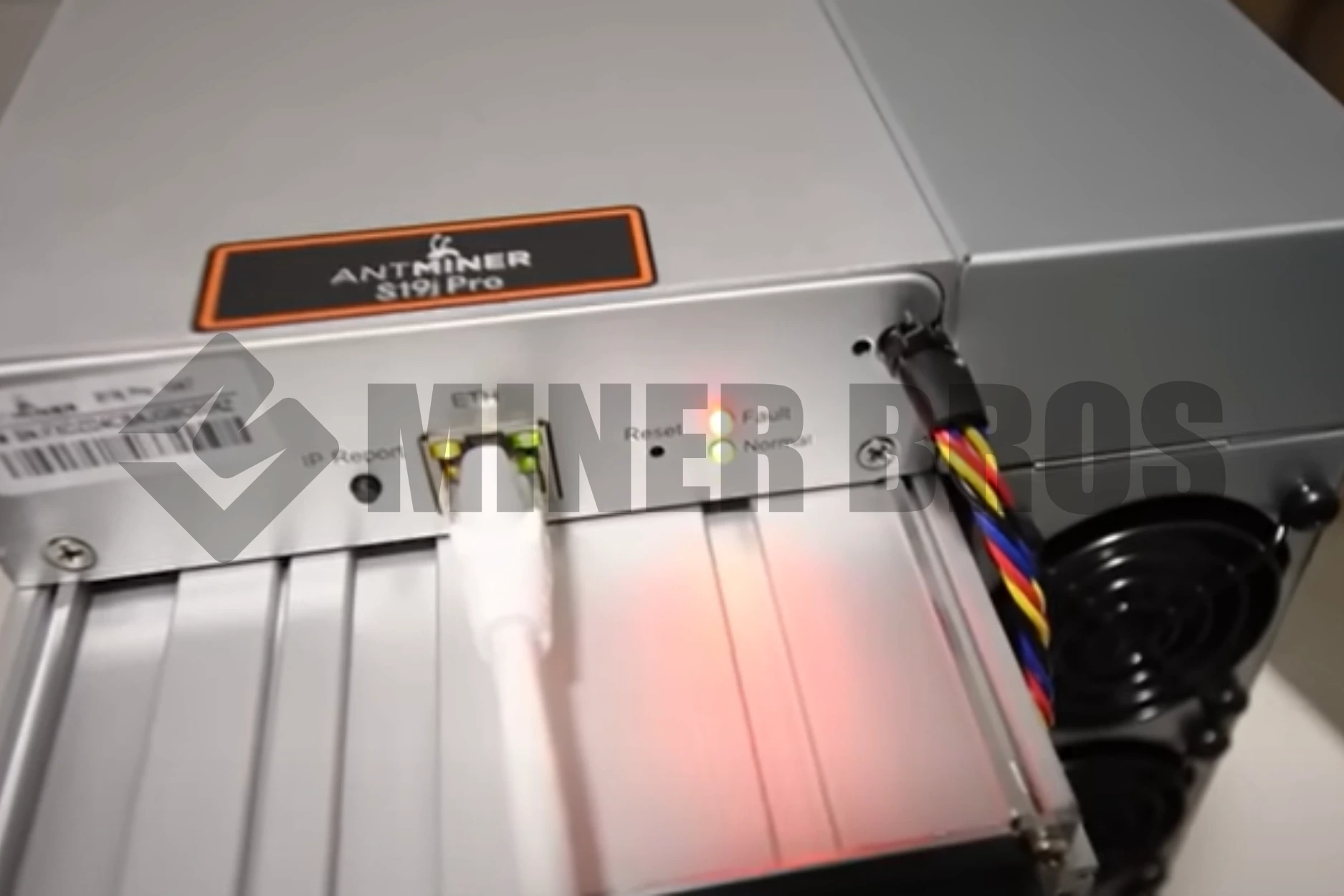

    • Once you let go of the IP report button, you can see the lights flashing.

    Connecting the IP reporter to Antminer S19J Pro - 20

    • Now, your computer screen should show a confirmation message listing the IP address. Hit the OK button.

    Connecting the IP reporter to Antminer S19J Pro - 21

    3. Accessing the S19j Pro via the Web Browser

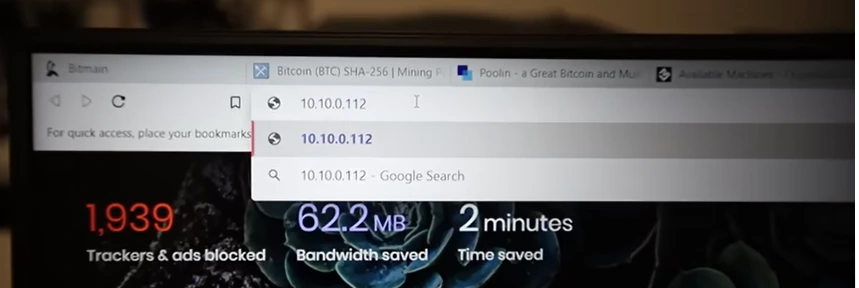

    • Open a new tab in your browser and enter the IP address.

    Accessing the S19j Pro via the Web Browser - 22

    • Hit the ENTER button. A window will pop up asking for a username and password.

    Accessing the S19j Pro via the Web Browser - 23

    • The default username and password for S19j Pro is “root.” However, in other models from different companies, the credentials may vary. You can reach us at info@www.cryptominerbros.com for assistance.

    Accessing the S19j Pro via the Web Browser - 24

    • Now you can access the Web GUI of the Antminer S19j Pro+.

    Accessing the S19j Pro via the Web Browser - 25

    4. Selecting the Mining Pool

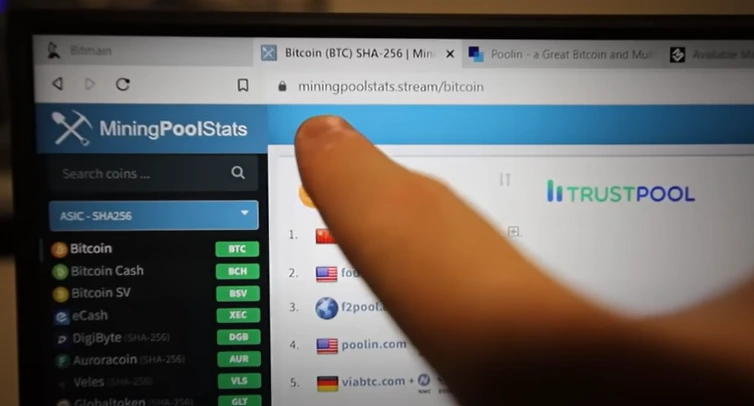

    • Go to https://miningpoolstats.stream/bitcoin. You will find the list of mining pools available for Bitcoin mining. Do your research and select the mining pool that best suits your mining needs.

    Selecting the Mining Pool - 26

    • Now, create an account with that mining pool. Here, we will illustrate how to make a sub-account with the mining pool, poolin.com.

    Selecting the Mining Pool - 27

    • Go to the Pool Account. Then click on the “Sub-account Manage.”

    Selecting the Mining Pool - 28

    Selecting the Mining Pool - 29

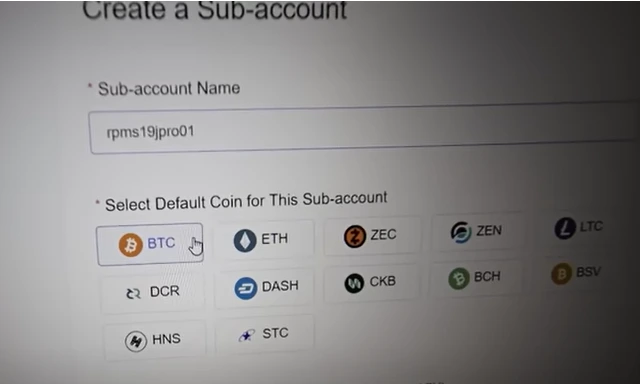

    • Create a sub-account by giving your preferred name. (Use all lowercase letters). Select the coin for the sub-account that is BTC.

    Selecting the Mining Pool - 30

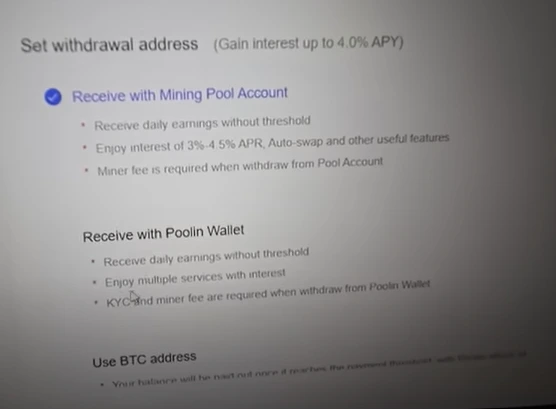

    • Now select the withdrawal address to receive your mining rewards. Selecting the “Recieve with Mining Pool Account” option is ideal as you can withdraw your rewards anytime.

    Selecting the Mining Pool - 31

    • After entering all the details, hit the CREATE button. Now you have your mining account.

    Selecting the Mining Pool - 32

    5. Adding the Miner Configuration

    • Go to the Web GUI of the Antminer S19j Pro+. Click on the SETTINGS tab. You should fill in the mining address, miner name and password.

    Adding the Miner Configuration - 33

    • You can simply copy and paste the details as shown below. Copy the url1, url2 and url3 addresses and paste them on pool1, pool2 and pool3 addresses.

    Adding the Miner Configuration - 34

    Adding the Miner Configuration - 35

    • You can paste the same worker’s name on all three miner names.

    Adding the Miner Configuration - 36

    Adding the Miner Configuration - 37

    • Enter the password as 123 on all three rows.

    Adding the Miner Configuration - 38

    • Click on SAVE after entering all the details.

    Adding the Miner Configuration - 39

    • You’re all set to mine Bitcoins from the mining pool.

    6. Start Mining Bitcoin

    • You can check the Antminer’s dashboard after a few minutes to know the mining status. The mining process should have started. It is advisable to reboot the computer to know the actual readings.
    • You can see the Antminer S19j Pro mining at its maximum hash rate of around 104Th/s.

    Start Mining Bitcoin - 40

    7. Withdraw Bitcoins

    • You can withdraw anytime as you mine Bitcoins and gain rewards in your wallet. Simply go to your pool account.

    Withdraw bitcoins - 41

    • Withdraw Bitcoins onto your Bitcoin wallet by giving its address.

    Withdraw bitcoins - 42

    Withdraw bitcoins - 43

    Power Infrastructure Requirements for Bitmain Antminer S19j Pro 104Th

    You will need the following setup to power your Antminer S19j Pro 104Th.

    • 30 amp 240V Circuit Breaker
    • 10 gauge wiring
    • 30 amp receptacle
    • 2 sets of C-13 to C-14 power cables
    • A PDU

    It is recommended to take a certified electrician’s help to have this power infrastructure set up for your S19j Pro 104Th.

    Bitcoin Price Prediction

    Bitcoin price plays a vital role in Bitcoin mining profitability. The higher the Bitcoin prices, the better the profitability. Though we can’t predict any cryptocurrency’s price precisely, here is what the experts predict about Bitcoin’s price. An expected price graph of Bitcoin for your quick reference.

    bitcoin price prediction - 44

    Source: Changelly

    Check out the Detailed Video Tutorial of How to Set Up the Antminer S19j Pro 104th

    CONCLUSION

    The major factors contributing to Bitcoin mining profitability are Bitcoin price, market volatility, quality of the mining hardware, electricity costs, etc. Of course, market trends or the Bitcoin price are out of our control. But you can always invest in the best Bitcoin mining machine, like Antminer S19j Pro 104Th, with an excellent hash rate and reduced energy consumption. That will help you keep your electricity costs down and make you most out of mining profits. Finally, ordering your Antminer S19j Pro 104Th from a reputed crypto mining dealer is crucial to prevent potential fraud and threats.

    Check out Bitmain Antminer S19j pro 104th

    FAQs about Bitmain Antminer S19j Pro 104th Set Up

    • How much power does the Antminer S19j Pro 104Th consume?

      The Antminer S19j Pro 104Th consumes around 3068W.

    • How to prevent the Antminer S19j Pro 104Th from overheating?

      S19j Pro has four high-speed fans to cool the machine from the heat generated during mining. However, placing it in a well-ventilated area and regularly cleaning the fans will give you the best results.

    • What is the energy efficiency of Antminer S19j Pro 104Th?

      It gives an energy efficiency of 0.03j/Gh.

    • What coins can I mine other than Bitcoin?

      You can mine all cryptocurrencies that follow the SHA-256 algorithm, like Bitcoin cash, Acoin, Curecoin, Joulecoin, Unbreakable, Terracoin, etc.

    • What is the lifespan of S19j Pro 104Th?

      With high-grade materials, the expected lifespan of the S19j Pro is over five years.
