Antminer S23 Hydro Review: Specs, Price & Profitability

What Is the Antminer S23 Hydro?

The Antminer S23 Hydro is Bitmain’s newest SHA-256 mining rig, put together for big industrial mining operations, not really for home setups, you know. It can reach a max hashrate of 580 TH/s, while using about 5,510W power, which comes to something like 9.5 joules per terahash. Honestly, that kind of efficiency really matters in 2026, because electricity costs are usually the most important thing that separates a profitable mining setup from one that’s just quietly bleeding money, month after month.

Unlike the air-cooled Antminers that depend on loud, high-RPM fans, the S23 Hydro instead uses a closed liquid cooling loop. The coolant runs straight through the hashboards, so it pulls the heat away a lot more efficiently than air ever could. That typically means the whole unit can be quieter, and it stays cooler even when it’s doing sustained full-load mining. In the end, this helps the chips keep their working life longer, and it also cuts down on thermal throttling.

The S23 Hydro is pretty compact, even for how much power it puts out, too. The bare unit comes in at 410 x 170 x 209mm, and it tips the scale at 13.5kg, but once you include the hydro enclosure plus cooling hardware, the actual overall footprint jumps up to 570 x 316 x 430mm. It hooks up with a standard RJ45 Ethernet port, and it runs on 380-415V power, so you’re basically looking at three-phase electrical infrastructure, not your everyday household outlet. That feels like a pretty strong clue that Bitmain designed this for mining farms and data-centre style installations, not some garage-type setup. As an ASIC miner, it’s purpose-built for one job only: cracking SHA-256 hashes as fast and efficiently as possible.

Mining-wise, the S23 Hydro mines Bitcoin exclusively and supports major mining pools, with NiceHash listed as a compatible option. It ships with a 365-day warranty, which is solid for hardware running at this scale of power draw.

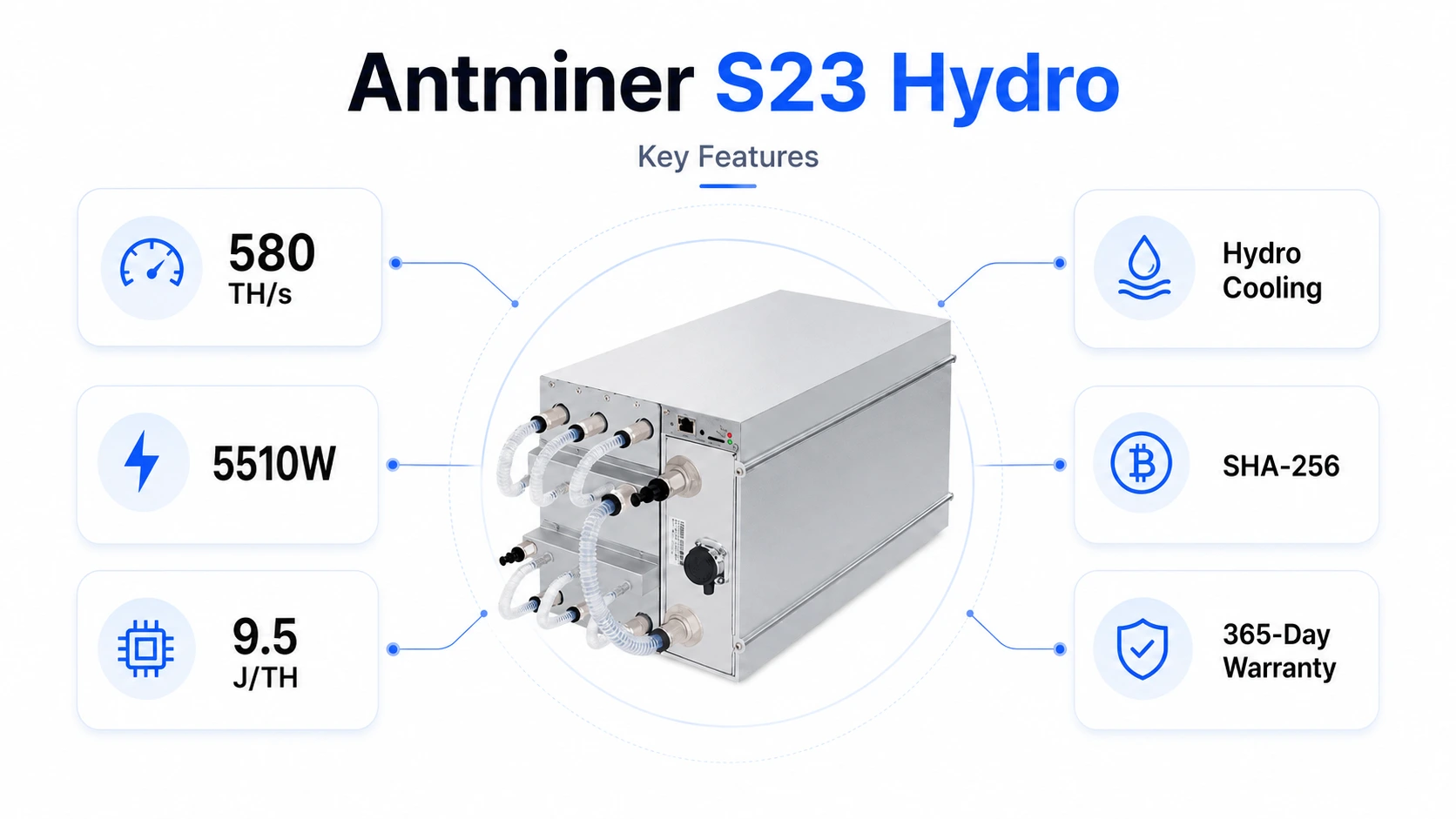

What Are the Key Features and Full Specifications of the Antminer S23 Hydro?

Here’s a full rundown of what makes this unit stand out:

• 580 TH/s hashrate: one of the highest output figures available in Bitmain’s current lineup
• Hydro cooling system: supports antifreeze, pure water, or deionised water as coolant
• Quiet operation: no high-speed fans means significantly less noise than air-cooled rigs of similar power
• 9.5 J/TH efficiency: competitive power-per-hash ratio for an industrial-scale miner
• PSU included: no need to source a separate power supply
• RJ45 Ethernet 10/100M connectivity: standard, reliable network setup
• 365-day warranty: covers manufacturing defects and hardware issues
• SHA-256 algorithm support: mines Bitcoin and is compatible with pools like NiceHash
• Wide operating range: functions in 20–50°C and 10–90% humidity environments
• Express shipping and quick assist support: available through CryptoMinerBros at checkout

Every spec, straight from the manufacturer listing:

How Does the S23 Hydro Compare to Other Bitmain Antminers?

For comparison, Bitmain air cooled lineup tops out much lower. The Antminer S21 XP runs at 270 TH/s, the S21 Pro sits between 234–245 TH/s, and the older S19K Pro produces 110–120 TH/s. The S23 Hydro more than doubles the output of even the S21 XP, which tells you just how large a generational leap this hydro design really is.

What’s Included When You Buy the Antminer S23 Hydro?

Buying through CryptoMinerBros includes a few extras worth knowing about before you check out:

• PSU included: the power supply ships with the unit, so there’s no separate purchase needed
• Express shipping: orders are processed and dispatched within 48 hours of verified payment
• Quick assist: direct access to support if you run into setup issues
• Bundle discounts: available when ordering multiple units, which makes sense given this is built for fleet-scale deployment

Keep in mind that the hydro cooling infrastructure itself, things like the radiator, manifold, pump, and reservoir, is separate from the miner. The S23 Hydro is designed to connect to a hydro cooling system, but you’ll need to have that loop built or purchased separately if you don’t already run one.

How Much Can You Actually Earn With the Antminer S23 Hydro?

This is the part everyone actually cares about, so let’s run the numbers using CryptoMinerBros live mining profitability calculator for the S23 Hydro, pulling in current Bitcoin network conditions with BTC trading at $64,752 today. At a standard electricity rate of $0.07/kWh, the calculator shows a daily income of $19.66, a daily electricity cost of $9.26, and a daily profit of $10.41, which works out to $312.22 a month and $3,798.68 a year.

Daily income stays the same regardless of your power rate since it’s based on hashrate and network conditions, not your electricity bill. Power draw is 5.51 kW, meaning the S23 Hydro burns through 132.24 kWh every single day, so the only thing that changes across the table below is the electricity cost line.

Here’s how that nets out at different electricity rates:

A few things jump out here. First, the electricity rate is everything. At $0.05/kWh, this machine pays for itself in roughly three years on power profit alone, before counting any equipment depreciation. At $0.12/kWh, the margins get thin fast, and at anything meaningfully higher than that, this unit could run at a loss. Second, these numbers will shift, as Bitcoin’s price and network difficulty move, sometimes really a lot, in only a couple of weeks, kinda depending on how volatile 2026 has been for mining margins. Treat it like a snapshot, not a promise or anything, and always recheck profitability using live data before you buy.

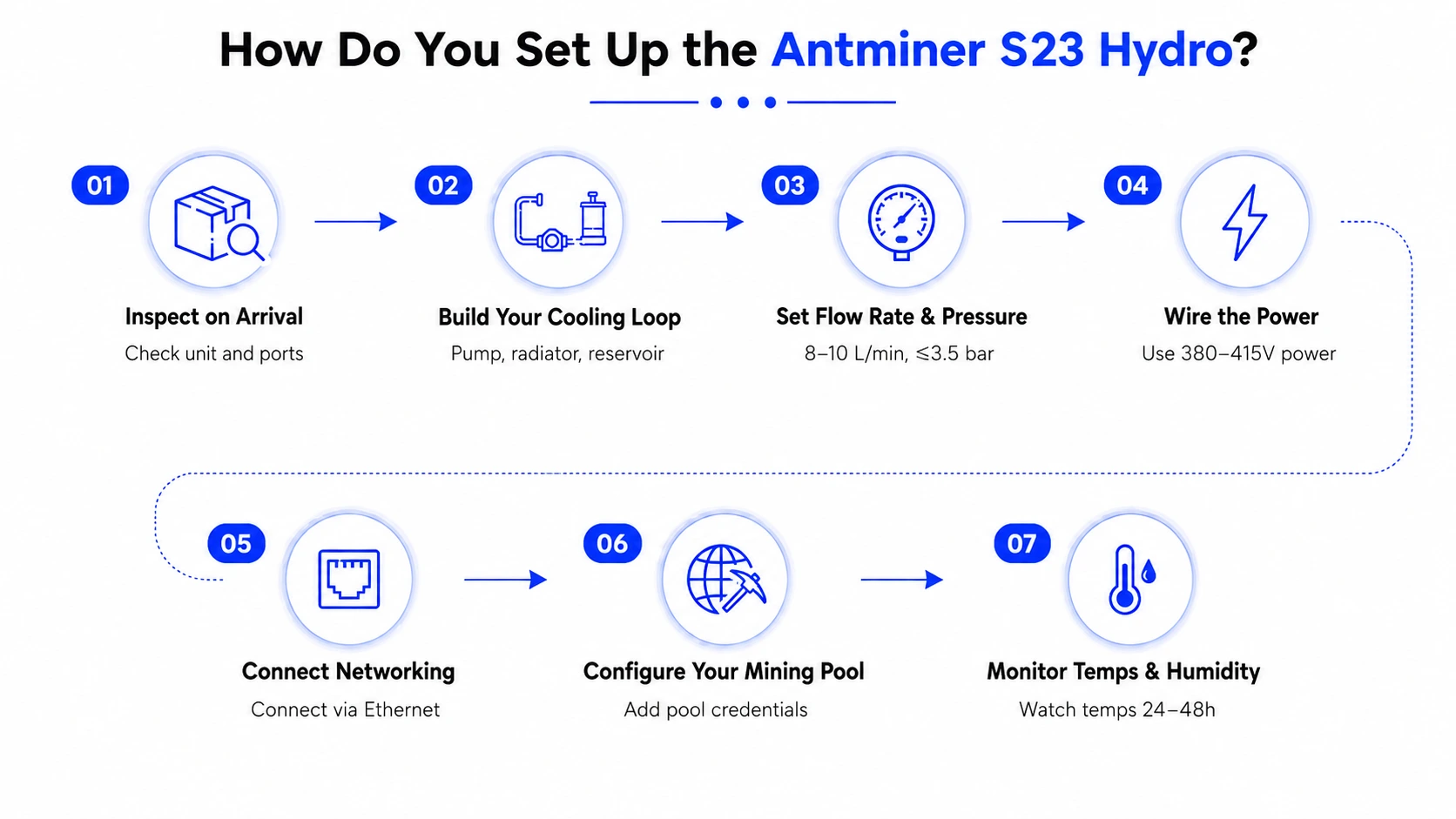

How Do You Set Up the Antminer S23 Hydro?

Hydro miners aren’t plug-and-play like air-cooled units. Here’s the realistic setup process:

1. Inspect on arrival. Check the unit and hydro box for shipping damage before connecting anything, especially around the coolant inlet and outlet ports.
2. Build your cooling loop. You’ll need a manifold or distribution system sort of thing, connecting to a radiator, a pump, and a reservoir. Bitmain seems to back antifreeze, pure water, or deionised water as coolant, but each option has a different, acceptable pH window, so you should pick just one and keep using it.
3. Set flow rate and pressure. Confirm your pump delivers 8.0–10.0 L/min of flow with pressure at or below 3.5 bar. Running outside this range risks leaks or insufficient cooling.
4. Wire the power. This unit needs 380-415V three-phase power. Have a licensed electrician confirm your site can handle 5,510W continuous draw per unit, especially if you’re racking up multiple machines.
5. Connect networking. Plug in via RJ45 Ethernet and locate the miner’s IP address through your router or a network scanner to access the web dashboard.
6. Configure your mining pool. Enter your pool’s stratum address and your wallet or worker credentials. NiceHash is a commonly used option for this model.
7. Monitor temps and humidity. Try to keep the room somewhere around 20–50°C, and humidity roughly 10–90%. It’s fine if it drifts a bit. During the first 24-48 hours, watch the dashboard pretty closely to confirm that the hashrate stays stable, and that coolant temperatures look steady too, before you just walk away.

What Do You Need to Know About Shipping, Payment, and Who It’s For?

Before you commit, here’s what you need to know about ordering, shipping, and after-sales logistics:

What Do You Need to Know About Shipping and Delivery?

• Orders are processed and dispatched within 48 hours after verified full payment, though bulk orders may need 1–2 extra business days.
• Shipping runs through major international carriers: DHL Express, UPS, FedEx, ARAMEX, and TNT.
• Standard international shipping takes 4–7 business days after dispatch, with total delivery time typically running 8–10 business days once customs is factored in.

What Payment Options Are Available?

• Bank transfer (wire) and supported cryptocurrencies at checkout
• All prices are listed in USD
• Crypto payments are calculated at the live exchange rate shown at checkout, and the final amount is confirmed at the time of payment.

What Should You Know About Customs, Duties, and Returns?

• A Delivery Duty Paid (DDP) option is available in select countries, covering customs and taxes upfront, but it requires advance arrangement.
• If a unit needs to be returned to Hong Kong, the buyer covers the return shipping cost.
• The unit carries a 365-day warranty covering manufacturing defects and hardware issues.

Who Is the Antminer S23 Hydro Actually For?

• Mining farms and colocation operators with access to three-phase power and sub-$0.10/kWh electricity
• Operators who already run or are willing to build out hydro cooling infrastructure
• Buyers purchasing in bulk, where the bundle discount and fleet-scale efficiency make the most sense

Who Should Skip the Antminer S23 Hydro?

• Home miners without three-phase power or space for a cooling loop
• Anyone paying retail residential electricity rates above $0.12/kWh
• First-time buyers who haven’t run an air-cooled unit before, since hydro setups have a steeper learning curve

What Do We Like About the Antminer S23 Hydro?

• Massive 580 TH/s hashrate in a relatively compact unit
• Strong efficiency at roughly 9.5 J/TH
• Hydro cooling means quieter operation and better thermal stability than fan-cooled rigs
• 365-day warranty
• PSU included, which saves an extra purchase

What Should You Consider Before Buying the Antminer S23 Hydro?

• Requires 380-415V three-phase power, ruling out most home setups
• Coolant infrastructure adds real upfront cost and maintenance work beyond the unit price
• The $12,949 price tag means a longer break-even period at higher electricity rates
• Profitability is tightly tied to the volatile Bitcoin price and network difficulty swings

The Antminer S23 Hydro is built for serious operators, not hobbyists. If you’re running a mining farm with cheap industrial power and the infrastructure to manage a liquid cooling loop, this machine offers some of the best raw hashrate and efficiency available right now. It’s not a casual purchase, and it’s definitely not for anyone without access to sub-$0.08/kWh electricity and three-phase wiring.

For data centre operators or large-scale farms looking to upgrade their fleet, the S23 Hydro earns its spot near the top of Bitmain’s lineup as one of the strongest ASIC miners currently on the market.
